cijoe: tools for systems development and testing#

cijoe is a tool designed to collect and formalize the common elements used during systems development, enabling an automated and reproducible workflow.

When using cijoe, the first step involves creating scripts for automating repetitive tasks. As these scripts are developed, all input values are stored in and passed through configuration files and environment variables. By keeping input values separate from the script itself, tasks can be easily replicated across different environments, ensuring flexibility and consistency in execution.

As your script collection grows, cijoe allows you to organize them into workflows. A workflow consolidates the script execution sequence, documents their combined purpose, and provides usage instructions. This clarity makes it easier for others to understand and consistently execute the workflow in their own environments.

After execution, cijoe generates a report that includes command output, script documentation, auxiliary collected artifacts, and a workflow summary. This report facilitates collaboration by providing results transparently, making them easy to review and reproduce.

Quickstart#

Try it yourself! The commands below install cijoe and then invoke cijoe --example which generates an example script, configuration file, and a workflow in your current working directory. Finally, when cijoe is executed, it picks up the example workflow and configuration file, runs them, captures output, produces an HTML report, and opens it using your preferred browser if one is available.

# Install cijoe into a pipx-managed virtual-environment
pipx install cijoe

# Produce example script, config, and workflow
cijoe --example

# Execute the workflow
cijoe

cijoe operates silently by default, as in, it does not print output unless errors occur. Options for customizing the behavior include:

  • -n / --no-report: Disable the generation and display of the HTML report.

  • -l / --log-level: Increase verbosity by setting a higher log level.

  • -m / --monitor: Enable real-time monitoring of the workflow.

For a detailed description of usage see cijoe --help and refer to the rest of the documentation, and good place to continue is with Usage.

Introduction#

If you’re familiar with tools like Chef, Puppet, and Ansible, it’s important to note that cijoe is not meant to replace or compete with them. Instead, cijoe is more closely aligned with Python projects such as Paramiko, Fabric, Invoke, and Invocations. In some cases, its usage also resembles tools like just and make.

While cijoe shares some similarities with these tools, it differs by prioritizing minimalism. This approach applies to system requirements, the codebase, and the concepts users need to learn.

In terms of functionality, cijoe may feel familiar to users of Ansible or Invocations, or a combination of both, but its focus is distinct.

Unlike configuration management tools, cijoe is a minimal, open-ended scripting tool that emphasizes maintainability, reusability, and built-in reporting for sharing results, including command output and artifacts.

cijoe is designed to execute commands, scripts, or workflows within continuous integration (CI) environments such as GitHub, GitLab, Travis CI, and Jenkins. It also allows for seamless execution of the same scripts on local systems, enabling developers to switch between CI providers while maintaining the ability to run automated tasks locally.

Development Environment

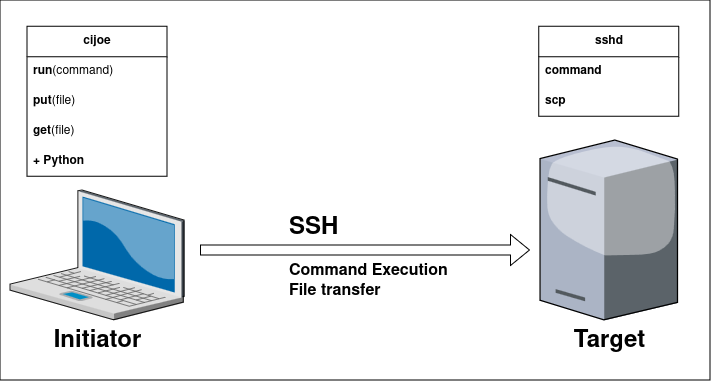

Fig. 1 The “core” agentless functionality of cijoe; run commands and transfer files#

Terminology#

For reference, then a bit of terminalogy used by cijoe is defined here. The intent here is to reduce confusion for readers with prior experience and knowledge for these terms in other contexts.

command

This is a string describing either the invokation of a command-line tool, this can be with or without arguments e.g. hostname and lspci -v. Or a shell-expression [ -f /tmp/ jazz ] && echo "Hello!".

initiator

This is the system on which cijoe is installed and where the cijoe command-line and scripts are executed

target

This is where commands are executed, and data (files/folders) is transferred to and from.

Key Features#

  • Simplicity:

    • cijoe is designed to be easy to use and does not require extensive learning. It avoids the need to master YAML-based scripting languages, as is common with other systems. Instead, it relies on Python and offers a helper class for the core scripting interface.

  • Agentless:

    • When used with remote systems, cijoe operates in an agentless fashion. It relies on SSH for executing commands on target systems. Unlike Ansible, cijoe does not require Python to be installed on the target node.

    • For data transfer, SSH and SCP are similarly used.

  • Realtime Output:

    • Whether cijoe is executing scripts of workflows, then it can provide you with realtime command output, directly in your console.

    • When running in cloud environments e.g. GitHub Actions, GitLab, Azure, Travis, etc. then it is very convient to immediately observe execution progress

  • Postprocessing:

    • All command output is collected in output logs without any form of filtering. By doing so, then post-processing, of artifacts and command-output is always possible

  • Reporting:

    • All data from runs, script and workflow executions, is collected in a HTML report. Conveniently viewable even when running on remote systems

In summary, cijoe aims to be a simple yet powerful tool that integrates well within your CI workflows, whether on a remote CI provider or local systems, without adding complexity.

Once you have ensured that the system prerequisites (Prerequisites) are met, proceed to the Usage section to run an example script and workflow. For documentation on how to create your own scripts, see Resources. Finally, refer to Packages for descriptions of existing script collections and related packages.
